PDLC liquid crystal dimming film
Return
PDLC liquid crystal dimming film is a kind of polymer liquid crystal material, the polymer in the liquid crystal film will be arranged in an orderly manner when the power is on, the dimming film will correspondingly become transparent, and the polymer arrangement will be disordered when the power is off, and the dimming film will show a transparent and opaque appearance.

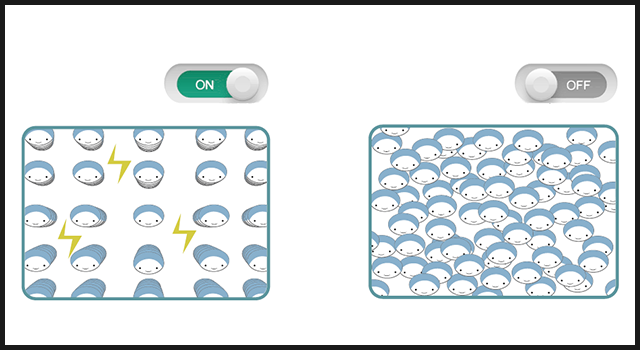

Principle of liquid crystal molecular display
  • ON
    Transparent
  • OFF
    Haze
    • Display effect
  • ON
    Absorption of HD light
  • OFF
    Sun protection

    • White wide temperature dimming PDLC

    Black wide temperature PDLC

    Wide angle PDLC

    Dye PDLC

    PDLC film can be used in combination according to the actual need, please contact customer service for more information
    • Cost-effective

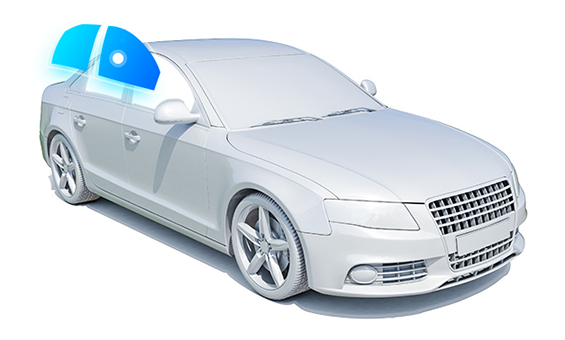

    • Main production of vehicle glass
    • Switch time is short, Different segments works independently
    • Insulation、Shading performance、Privacy protetion
    PDLC film can be used in combination according to the actual need, please contact customer service for more information.
    • Fashion Black
    • Strong concealment
    PDLC film can be used in combination according to the actual need, please contact customer service for more information.
    • Reduced side-view haze
    • Reduces halo effect
    PDLC film can be used in combination according to the actual need, please contact customer service for more information.
    • Very high contrast ratio
    • High opacity
    • No white haze from wide angle
    Main features
    Intelligent dimming
    Intelligent partition control
    Partition + Ambient Lighting

    Product Parameters

    Structure and Principle

    Major function

    Application catalog

    White wide temperature PDLC

    Item

    Conditions

    Requirements

    Optical Performance

    Visible Light Transmittance

    ON

    80-90%

    OFF

    70-80%

    Haze

    ON

    ≤5%

    OFF

    ≥95%

    Electronic Performance

    Working Voltage

    ON

    48V(60HZ)

    Response Time

    ON→OFF

    ≤100ms

    OFF→ON

    ≤50ms

    Power Consumption

    ON

    ≤7VA/㎡

    Thickness of PDLC film

    /

    0.39±0.01mm

    Working Temperature

    ON

    -30℃-100℃

    Electric control operation

    ON

    HD light

    OFF

    Shading performance

    Reference material, not to be used as a minimum or maximum control standard for shipments.

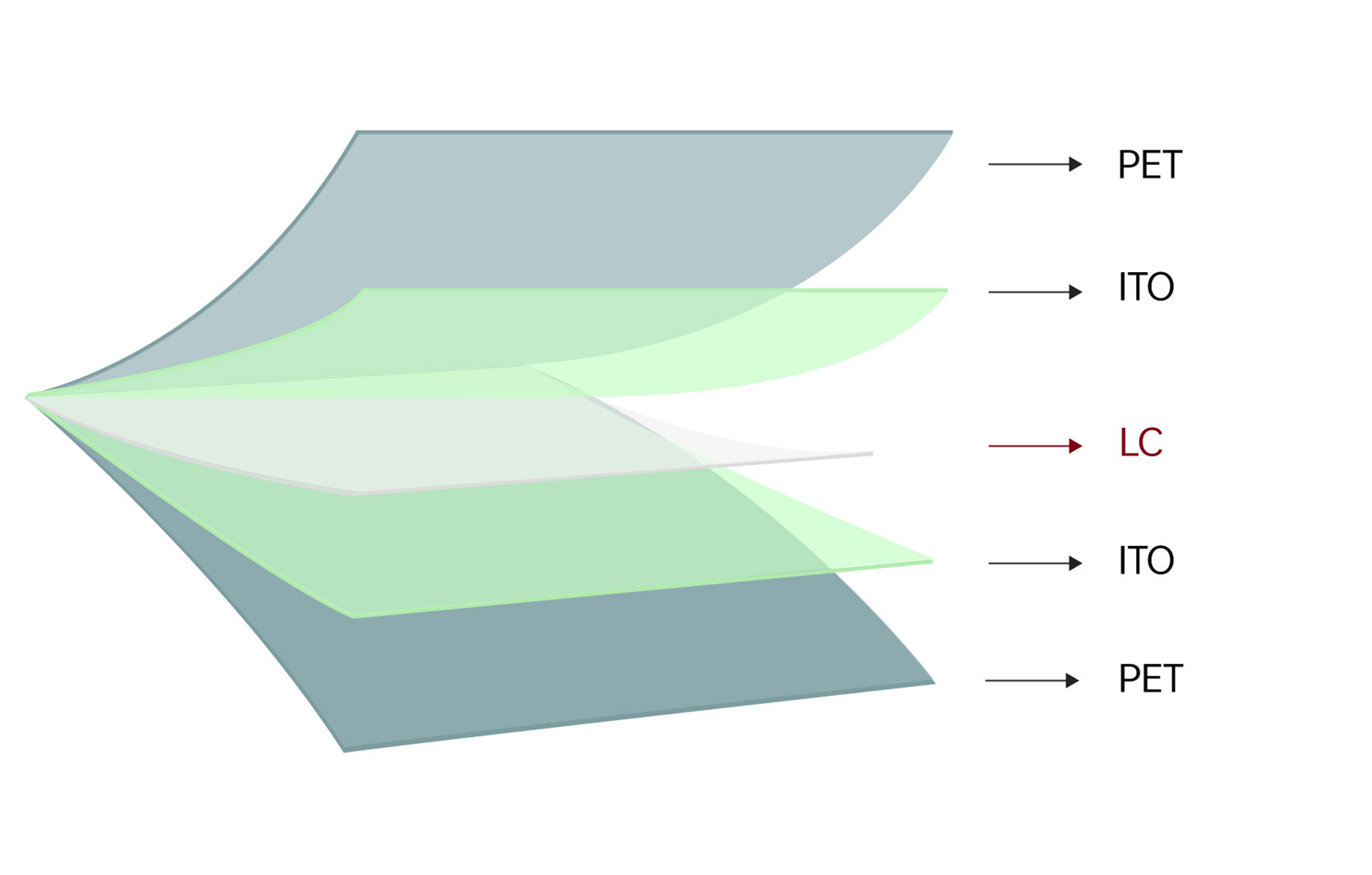

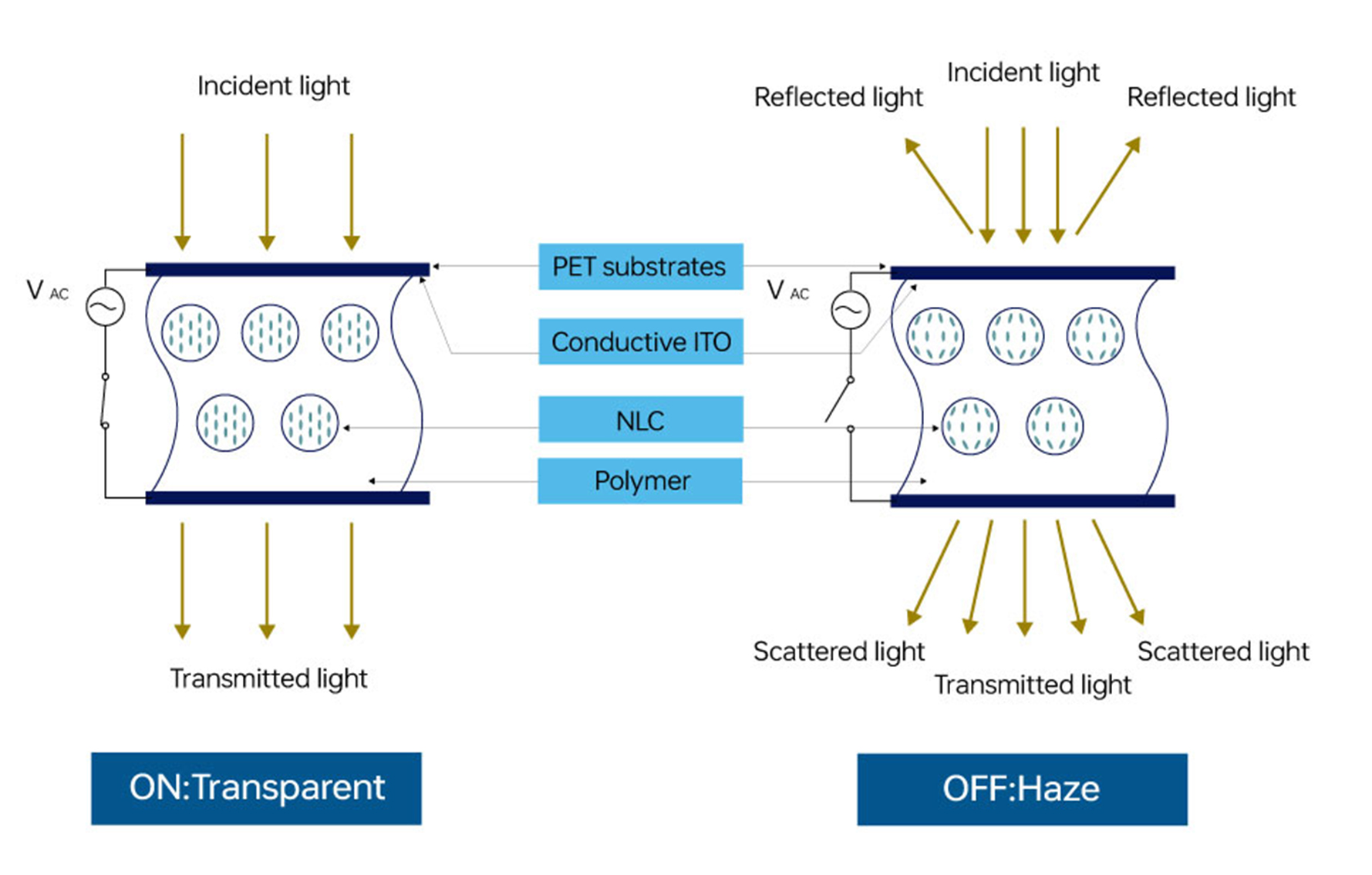

    Structural
    Schematic
    Intelligent dimming
    Intelligent partition control
    Shading performance
    Highly efficient thermal insulation
    Energy conservation and emission reduction
    Privacy protetion
    explosion-proof

    • canopy

    • Rear window

    • Side window
